    ERGON-MED line
    MEDICAL UPS
    compliant to IEC60601-1:2005/A1:2012 and IEC60601-1-2:2014
    Operating theatres
    Electro-medical devices
    Blood management systems
    Neonatal intensive care units
    Pulmonary ventilators
    Laser surgery
    RANGE:
    from: 400W
    to: 4000W

MEDICAL UPS

Current health-care provides rapid diagnosis and patient treatments conditions through a substantial confidence on impeccable and precise performances through sophisticated technology based equipment.
Highly developed devices such as clinical analyzers, imaging systems, patient monitoring, cardiac devices, laser surgical equipment and other sensitive electronic systems are all extremely susceptible to damages and interferences caused by power quality problems.
When that happens, correct, precise and accurate diagnosis and treatments are quite impossible.

ENERSINE medical high-safety solutions are designed to prevent power related destructions, damages and disruptions to ensure sophisticated electronic health-care technologies perform as they were intended.
Enersine ERGON-MED line complianto to IEC60601-1:2005/A1:2012 and IEC60601-1-2:2014 norms is completely projected and studied to guarantee maximum safety to the medical equipment connected. Professional systems totally dedicated to supply critical devices where mains interruptions can generate inconveniences during special treatments.
High care components selection and skilled labor to manufacture all Ergon-Med let them to be a quality level product with the Made in Italy value.
Skilled technical staff allows the possibility to follow dedicated projects on special customer requirements.



    Product size range: from 400W to 4000W nominal power
    True on-line double conversion inverter design
    Low impedance input toroidal transformer with 6000V galvanic isolation and electrostatic shield
    Output toroidal transformer with 4000V galvanic isolation
    Medical filters to reduce input and output disturbs (earth leakage current < 0.5µA)
    On board static switch by-pass: 6000V galvanic isolation maintained in by-pass mode functioning
    Electronic section in low voltage design for patient and operators high safety
    Digital LCD display with blue light: V+I output
    Battery status control through auto battery test or manual battery test
    Battery charger studied to guarantee the maximum battery efficiency and lifetime
    Hermetic lead batteries 10 years life design
    User-friendly front panel to easily check the ups functioning and status



DOWNLOAD

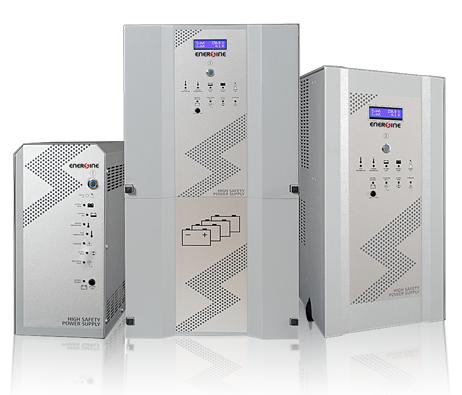

MODELS POWER BACK UP TIME BATTERIES WEIGHT KG TOWER VERSION
(LxDxH)
ERGON-MED 2 400W 20 MIN 2X12V 9AH 30 243 x 585 x 482
ERGON-MED 4 900W 20 MIN 4X12V 9AH 35 243 x 585 x 482
ERGON-MED 6 1350W 12 MIN 4X12V 9AH 45 243 x 585 x 482
ERGON-MED 9 2100W 15 MIN 8X12V 9AH 60 243 x 585 x 482
ERGON-MED 12 3000W 8 MIN 8X12V 9AH 80 243 x 585 x 482
ERGON-MED 15 3375W 12 MIN 4X12V 24AH 70+60 355 x 782+53 x 765
ERGON-MED 18 4050W 12 MIN 4X12V 33AH 77+70 355 x 782+53 x 765
